How to Implement and Use a Clio Prime Sensor

Instructions for first time setup of Clio Prime Sensor

Note: If you already use Clio Primes and happen to receive a new one, no need to do anything, it's plug and play.

1) Ensure SOTA Hub is installed on the PC

• You should see the SOTA Hub Icon on the desktop.

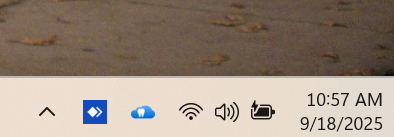

  As well as the icon in the "system tray"

2) Plug in your Clio Prime Sensor

3) Right click on the Icon in the "System Tray" and select the "Settings" tab

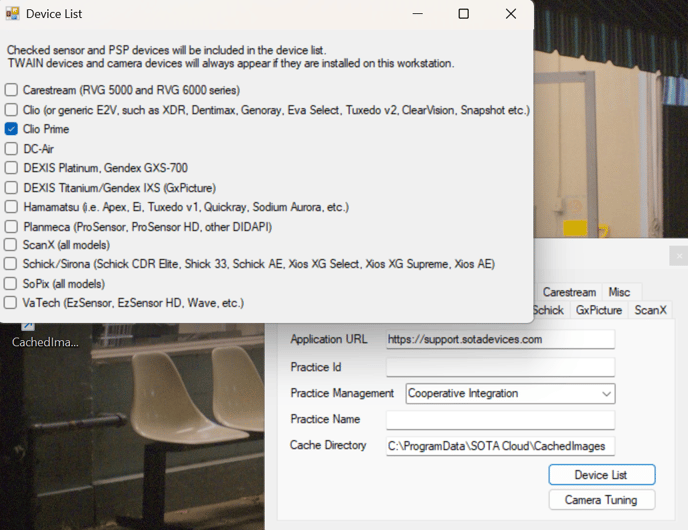

4) On this new Window you will then select the "Device List" from which you will manually check the Clio Prime option. This allows the Clio Prime to be listed as a selectable device for taking X-Rays in SOTA Cloud.

5) At this point when you login to SOTA Cloud and go to take an exam you should be able to click on the device list and see the Clio Prime listed as a device.

TO DEFAULT THE CLIO PRIME AS THE PRIMARY DEVICE (per PC setting)

1) Within SOTA Cloud navigate to the dropdown menu in the top right of the window next to the name of the current user

2) Select "Settings" within that dropdown menu

3) Navigate to the "Sensor" option of that new window

4) Select "Clio Prime Sensor" from the "Default Device" dropdown menu

5) Click the green Save button to save the Clio Prime Sensor as the default device
